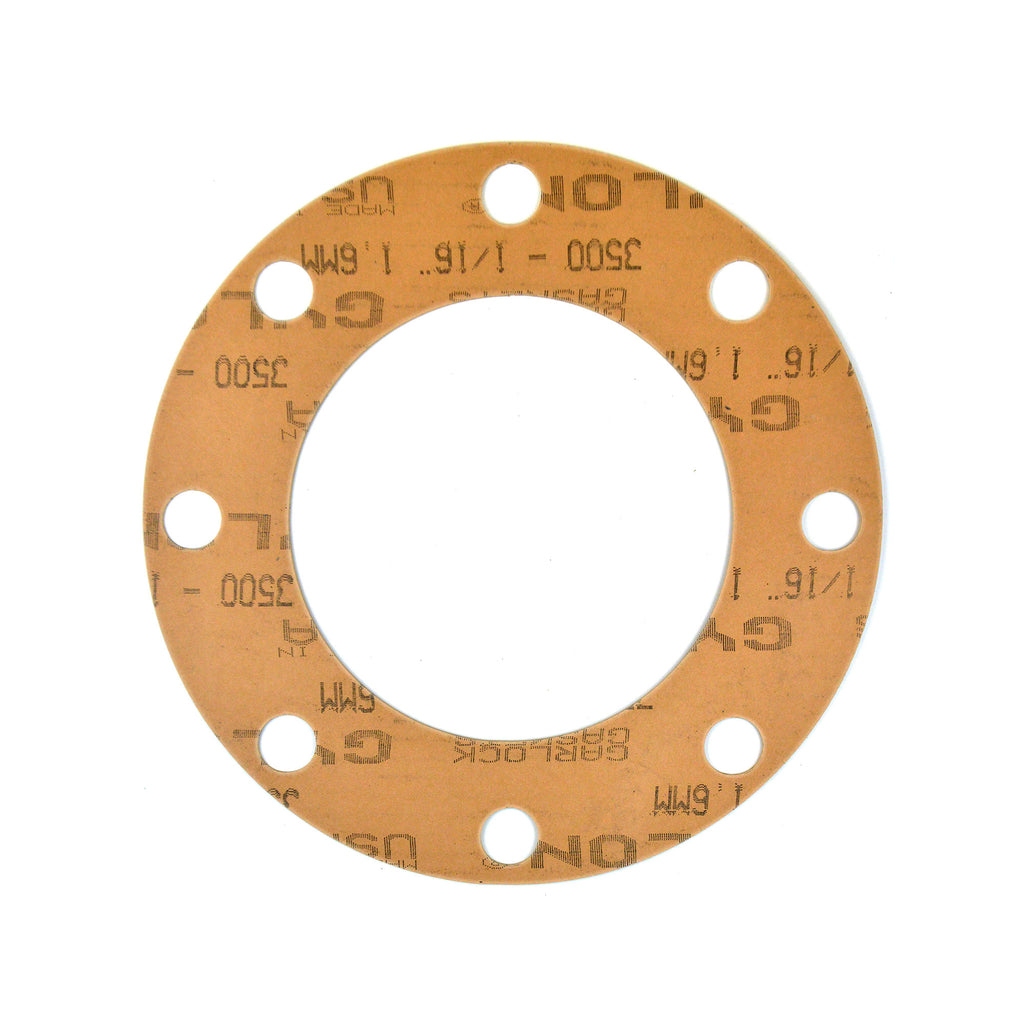

Garlock GYLON Style 3500 gasketing material is a high performance, silica filled PTFE sheet material designed for use with strong acids, solvents, hydrocarbons, and other aggressive media. With a tight seal that has an improved performance over a conventional PTFE material. With a reduced product loss and emissions and reduced creep relaxation this unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets.
The Garlock GYLON Style 3500 has an excellent bolt torque retention and withstands a wide range of chemicals for extended service live in a wide variety of applications. Garlock GYLON Style 3500 has branding and color coding that reduces misapplication. Additionally Garlock GYLON Style 3500 doesn't support flame or bacterial growth which makes it ideal for all strong acids except hydroflouric acid, solvents, hydrocarbons, water, steam, chlorine and cryogenics.
For additional information on applications and usage, consult the experts at Gasket Supply.
Features and Benefits
The GYLON Style 3500 produces a tighter seal with an improved performance over conventional PTFE materials. With a unique manufacturing process that minimizes cold flow problems typical of skived and expanded PTFE sheets, the The GYLON Style 3500 reduces product loss and emissions with a reduced creep relaxation and excellent bolt torque retention. The GYLON Style 3500 can withstand a wide range of chemicals for extended service life in a wide variety of applications.
- PTFE with silica
- Color: Fawn
- Available in Full face or ring
- Available for 150 lb or 300 lb
- Available in 1/16 inch or ⅛ inch
- Meets ABS, FDA and USDA specifications
- Min. Temperature: -450°F / -268°C
- Max. Temperature: 500°F / 260°C
- Max. Pressure: 1200 PSI / 83 bar
- Maximum PxT 1/16: 350,000 °F x PSIG / 12,000 bar x °C
- Maximum PxT 1/8: 250,000 °F x PSIG / 8,600 bar x °C
- Strong acids (except hydrofluoric acid)
Gasket sizes are based on ASME/ANSI Class 150lb dimensions. For Class 300lb gaskets, custom cut gaskets, or any sizing questions, please feel free to reach out to a specialist for assistance >>
Technical Specs for Garlock GYLON Style 3500 PTFE
