Garlock White Gylon 3545

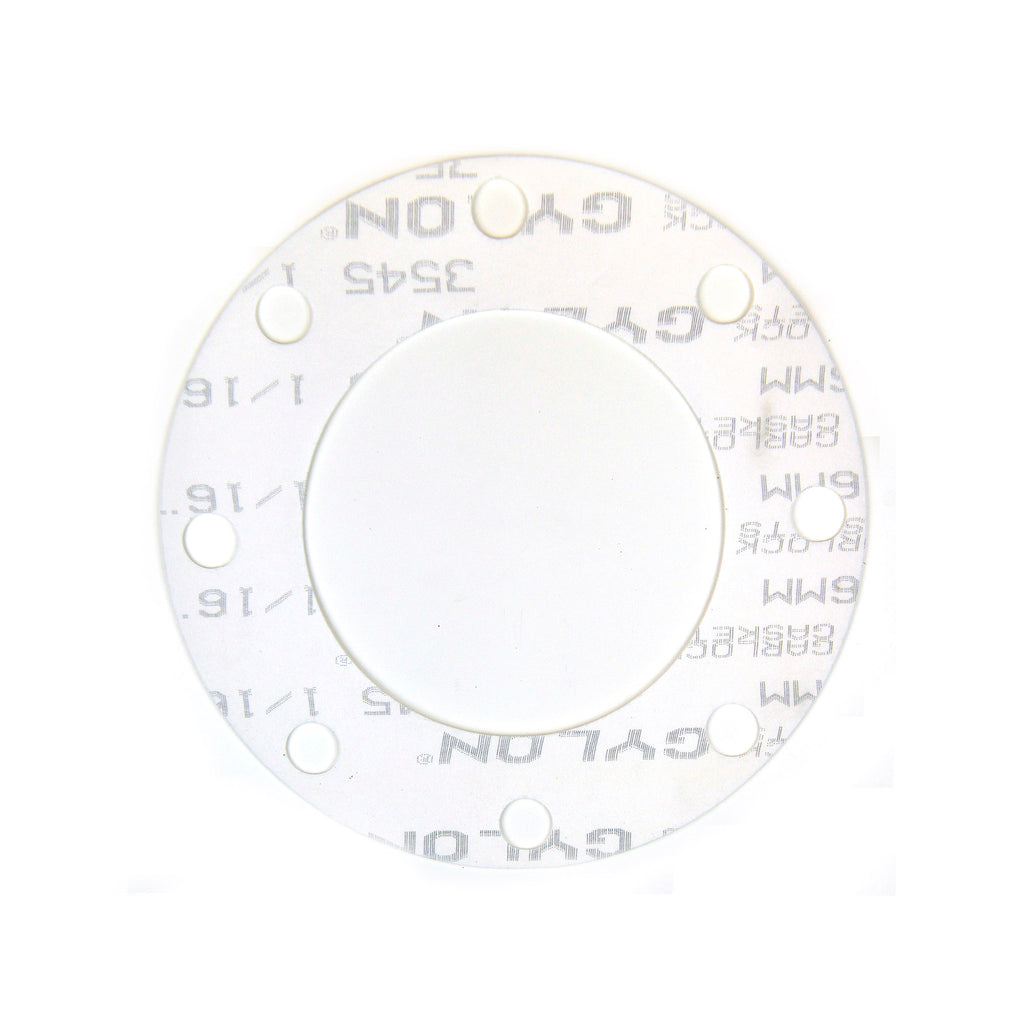

    Garlock GYLON Style 3545 Microcellular PTFE Gaskets

    $3.30
    Garlock GYLON Style 3545 gasketing material is a highly compressible microcellular PTFE with a rigid PTFE core for improved handlability. The GYLON 3545 designed to compress and conform to irregular or damaged surfaces, making it suitable for flanges that generate lower compressive stresses, such and glass-lined flanges and equipment. This highly compressible PTFE material has outer layers that seal under low bolt load. Its compressible layers conform to irregularities, especially on warped, pitted, or scratched flanges while its rigid PTFE core reduces cold flow and creep.

    The Garlock GYLON Style 3545 has a rigid PTFE core that facilitates easy installation, especially on larger diameter flanges and hard-to-reach areas. Garlock GYLON 3545 withstands a wide range of chemicals, does not support flame or bacterial growth. It is most commonly used in applications with strong caustics, strong acids, hydrocarbons, chlorine, cryogenics, glass-lined equipment and low bolt load applications.

    For flat face flanges, a minimum compressive stress of 1,500 psi is recommended on the contacted gasket area for 150 psig liquid service. Consult the experts at Gasket Supply to confirm that adequate compressive stress is available.



    Features and Benefits

    The GYLON Style 3545 has highly compressible PTFE outer layers that seal under a low bolt load but provide a tight seal. The compressible layers conform to irregularities, especially on warped, pitted or stretched flanges. It's rigid PTFE core reduces cold flow and creep all while withstanding a wide range of chemicals. Additionally, the rigid PTFE core facilitates installation, especially on large diameter flanges and hard-to-reach areas.


    Specifications

    • White
    • Microcellular PTFE
    • Conforms to FDA regulations and ABS specification
    • Min. Temperature: -450°F / -268°C
    • Max. Temperature: 500°F / 260°C
    • Max. Pressure: 1200 PSI / 55 bar
    • Maximum PxT 1/16: 350,000 °F x PSIG / 12,000 bar x °C
    • Maximum PxT 1/8: 250,000 °F x PSIG / 8,600 bar x °C



    Industrial Applications

    • Strong caustics
    • Strong acids
    • Hydrocarbons
    • Chlorine
    • Cryogenics
    • Glass-lined equipment†
    • Low bolt load applications*


    *For flat face flanges, a minimum compressive stress of 1,500 psi is recommended on the contacted gasket area for 150 psig liquid service. Consult with the flange manufacturer to confirm that adequate compressive stress is available.


    † When sealing uneven flanges, gasket must be four times thicker than maximum gap between flanges.

    Gasket sizes are based on ASME/ANSI Class 150lb dimensions. For Class 300lb gaskets, custom cut gaskets, or any sizing questions, please feel free to reach out to a specialist for assistance >>

    Technical Specs for Garlock GYLON Style 3545 Microcellular PTFE

    ×
