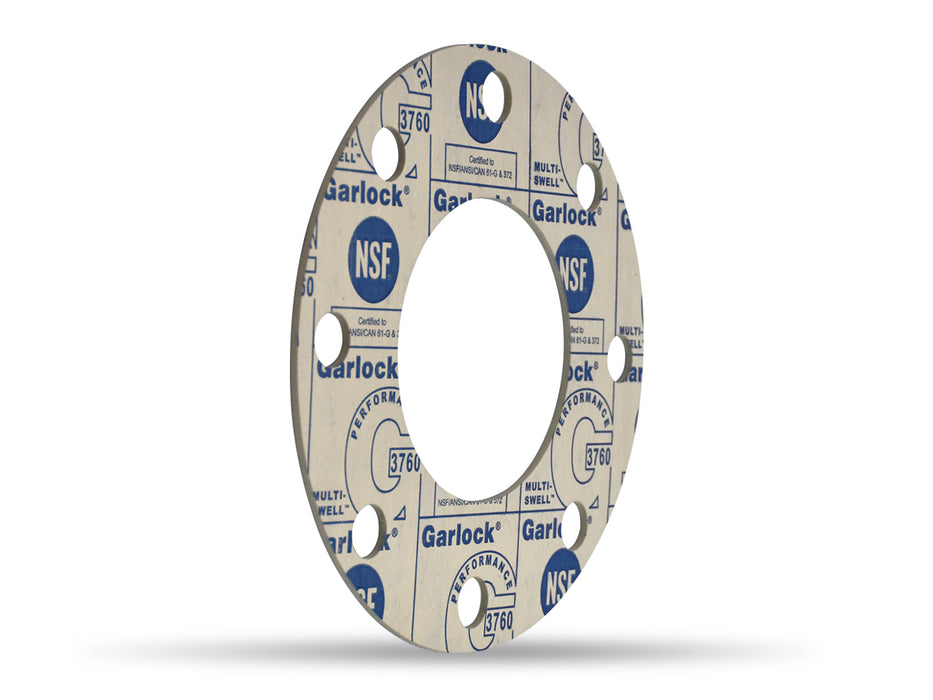

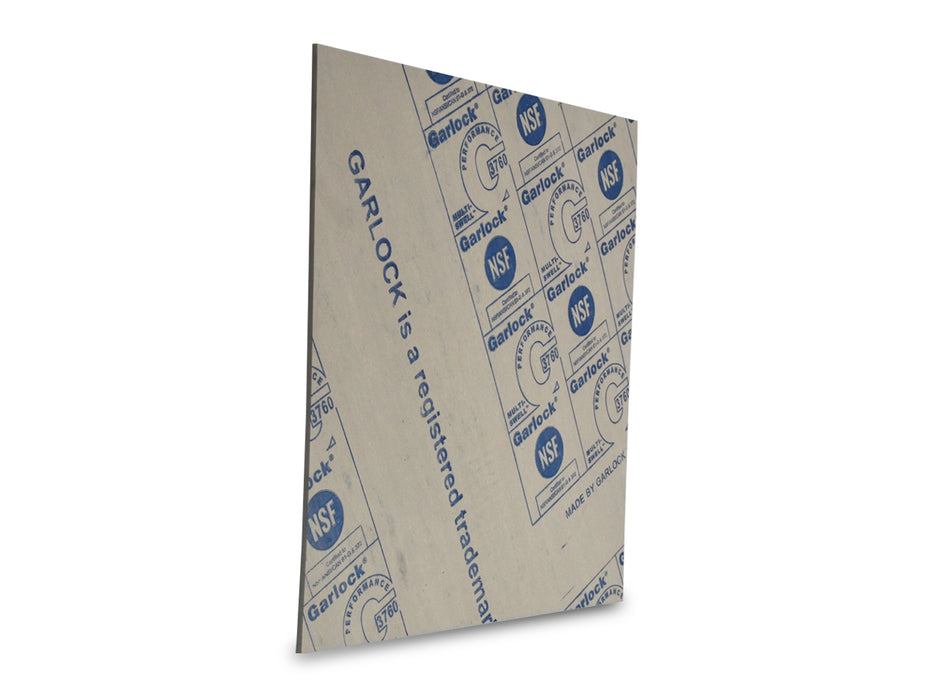

Garlock 3760 Multi-Swell
CUT MULTI-SWELL 3760 GASKETS OF ALL SIZES AVAILABLE. REQUEST A QUOTE, CHAT, OR CALL.
Garlock's Multi-Swell 3760 is a controlled swell gasketing material designed to generate its own compressive load when exposed to oil, water and other fluids. Certified to NSF/ANSI/CAN 61 & 372 for potable water service, this material is ideal for lower-load flanges often used with compressors, gearbox assemblies, pumps, and lightweight oil systems. Gaskets made of MULTI-SWELL™ deliver an ultra-tight seal where traditional fiber or rubber gaskets leak or crush over time. With superior conformability, it easily replaces traditional vegetable fiber materials that wick process fluids and weep over time, offering a more reliable and longer-lasting seal across a wide range of general service applications.
Features and Benefits
Garlock Style 3760 is a good option for applications including cooling water systems, data centers, potable water, petroleum oil, and coolants.
Specifications:
- Color: Blue/Off-White
- Synthetic Fiber with Proprietary Rubber Binder
- Temperature range: -100F to 400F
- Max PxT 1/16” 150,000 Temp(F) x PSIG
- Max PxT 1/8” 100,000 Temp(F) x PSIG
